Vinyl-Insulated Spade Terminal for 0.5-1.5mm² Cables (AWG 22-16) | 19A Max Current | Purple Copper Electrical Spade Connector with Flared PVC Sheath

Description

Products Description

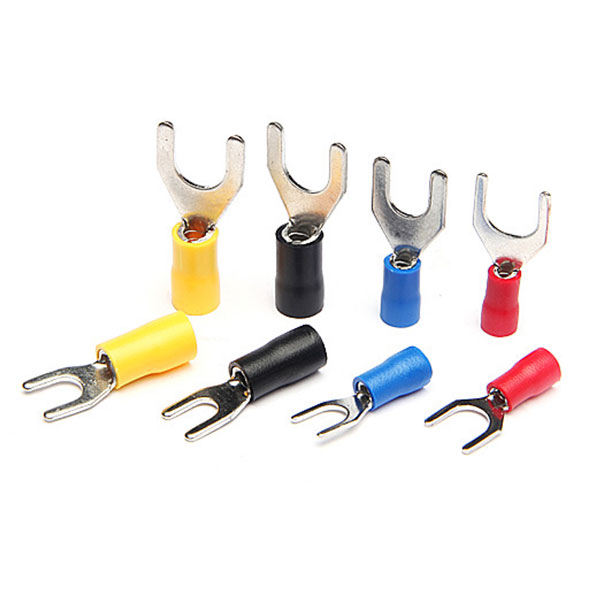

The Vinyl - Insulated Spade Terminal, also referred to as the Electrical Spade Connector, is designed for cables with a cross - sectional area of 0.5 - 1.5mm² (A.W.G.22 - 16) and can handle a maximum current of 19A. It is crafted from 0.7mm - thick purple copper. The spade features an open end, which enables quick and easy installation changes.

The insulation of the spade terminal is molded onto a tin - plated copper base. This base ensures a high - quality and secure wire connection. Additionally, the insulation comes with a flared PVC sheath. This sheath forms a funnel - shaped entry, facilitating easy wire insertion and enabling fast and efficient crimping.

Electrical Spade Connector

Cable size:0.5~1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.7mm

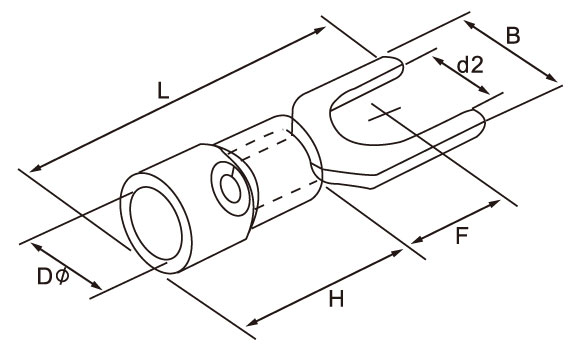

Item No.	American Bolt number	Dimension(mm)						Color
		Screw dia.	B	L	F	H	D
		d2	B	L	F	H	D
SV1.25-3	#4	3.2	5.7	21.6	6.5	10	4.3	Red
SVS1.25-3.5	#6	3.7	5.7	21.6	6.5
SVL1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS1.25-4	#8	4.3	8.0	21.2	6.5
SVM1.25-4	#8	4.3	7.2	21.2	6.5
SVL1.25-4	#8	4.3	8.1	21.2	6.5
SVS1.25-5	#10	5.3	8.1	21.2	6.5
SVL1.25-5	#10	5.3	9.5	21.2	6.5
SVS1.25-6	1/4	6.4	9.5	21.2	6.5
SVL1.25-6	1/4	6.4	12.0	27.2	11

Cable size:1.5~2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm

Item No.	American Bolt number	Dimension(mm)						Color
		Screw dia.	B	L	F	H	D
		d2	B	L	F	H	D
SV2-3	#4	3.2	5.7	21.2	6.5	10.6	4.9	blue
SVS2-3.5	#6	3.7	5.7	21.2	6.5
SVL2-3.5	#6	3.7	6	21.2	6.5
SVS2-4	#8	4.3	6.4	21.2	6.5
SVM2-4	#8	4.3	7.2	21.2	6.5
SVL2-4	#8	4.3	8.1	21.2	6.5
SVS2-5	#10	5.3	8.1	21.2	6.5
SVL2-5	#10	5.3	9.5	21.2	6.5
SVS2-6	1/4	6.4	9.5	21.2	6.5
SVL2-6	1/4	6.4	12	27.8	11
SV2-8	5/16	8.4	12	27.8	11

Cable size:2.5~4mm²(A.W.G.14-12) Max current:Imax=37A Material: purple copper Thickness:1.0mm

Item No.	American Bolt number	Dimension(mm)						Color
		Screw dia.	B	L	F	H	D
		d2
SV3.5-3	#4	3.2	5.7	26.8	7.0	13.0	6.2	black
SV3.5-4	#8	4.3	8.0	24.8	7.0
SV3.5-5	#10	5.3	8.0	24.8	7.0
SV3.5-6	1/4	6.4	12.1	28.3	12.1

Cable size:4~6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm

Item No.	American Bolt number	Dimension(mm)						Color
		Screw dia.	B	L	F	H	D
		d2	B	L	F	H	D
SV5.5-3.5	#6	3.7	8.4	26	7.5	13.0	6.7	yellow
SVS5.5-4	#8	4.3	8.4	26	7.5
SVL5.5-4	#8	4.3	9.0	26	7.5
SV5.5-5	#10	5.3	9.0	26	7.5
SVS5.5-6	1/4	6.4	9.0	26	7.5
SVL5.5-6	1/4	6.4	12.0	32	12.0
SV5.5-8	5/16	8.4	14.0	31	11.5
